LS400-DL

Range of application

This series product can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc.

Product Design Feature

Designed with all DC driven components like fans, compressor,

Precise temperature control through inverter digital regulation of compressor, fans,

Power supply voltage range: DC42~60 V:

A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition.

Low power consumption design with EER>3.5, SEER> 5.5

Energy saving reach to 50% comparing with A C. version product;

IP55 environment protection & fit for T3 high temperature working condition by using of R 134a refrigerant gas;

The best cooling solution for solar, wind, disel generator etc,hybrid power system.

Strict process control and international brand parts deployed to ensure high quality and reliable of this product

Multiple self protection design,

LED Display, all the settings can be changed at the field.

Dry contact alarm output,NO/NC optional;

Equipped with communication interface:RS485

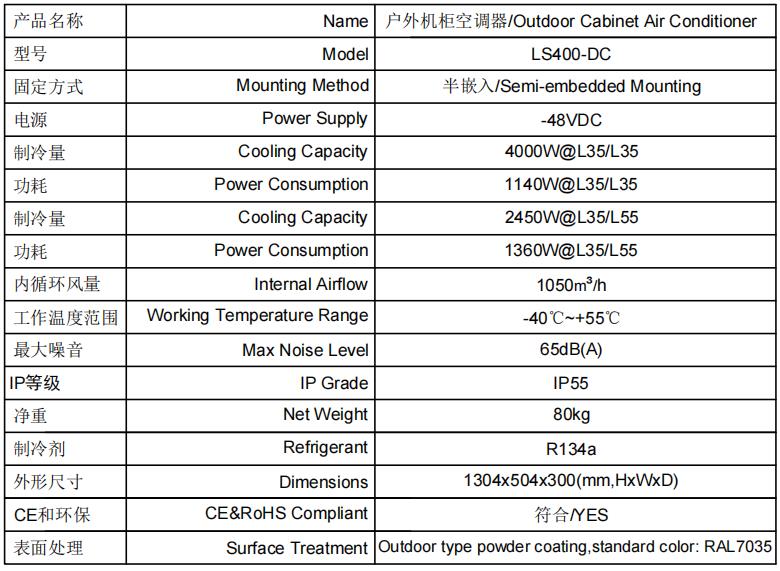

参数表

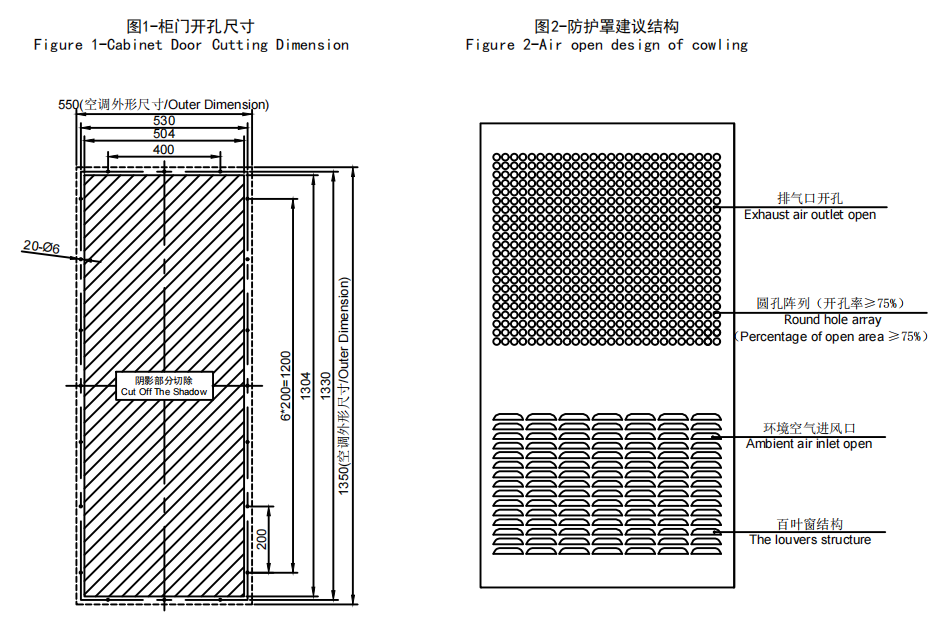

开孔尺寸图
