LS500-DL

Range of application

This series product can be widely used in enclosed area for climate control, suchas wireless communication cabinet, battery cabinet,industry control cabinetetc;

Product Design Feature

Remote measuring, remote communication, remote control, which can realizemultiple automatic protection and comprehensive self-testing function;

Strict process control and famous brand components to ensure high quality andreliability of this product;

Fit for harsh condition (T3), R134a refrigerant ;

Multiple self-protection design & visible monitoring interface, RS485communication port (MODBUS-RTU protocol);

LED display, all the settings can changed at the field;

The heating function is optional;

Humidity control function is optional;

Dry contact alarm output,NO/NC optional;

4~20mA temperature and humidity signal output by the way of current,thisfunction is optional;

Anti-theft design, without the protection cover。

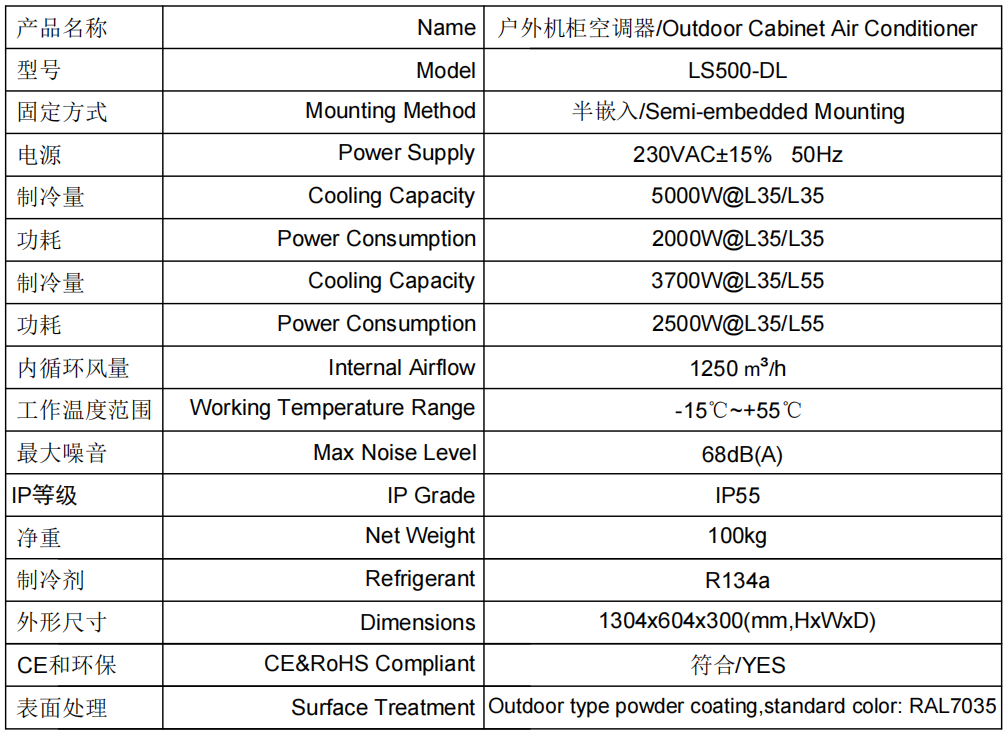

参数表

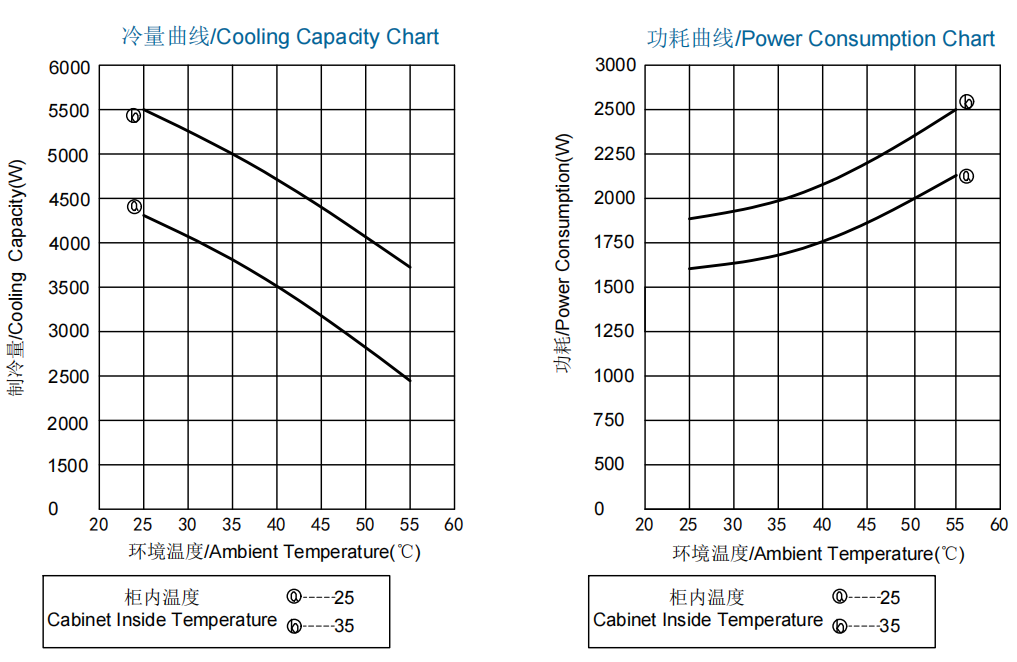

性能曲线图

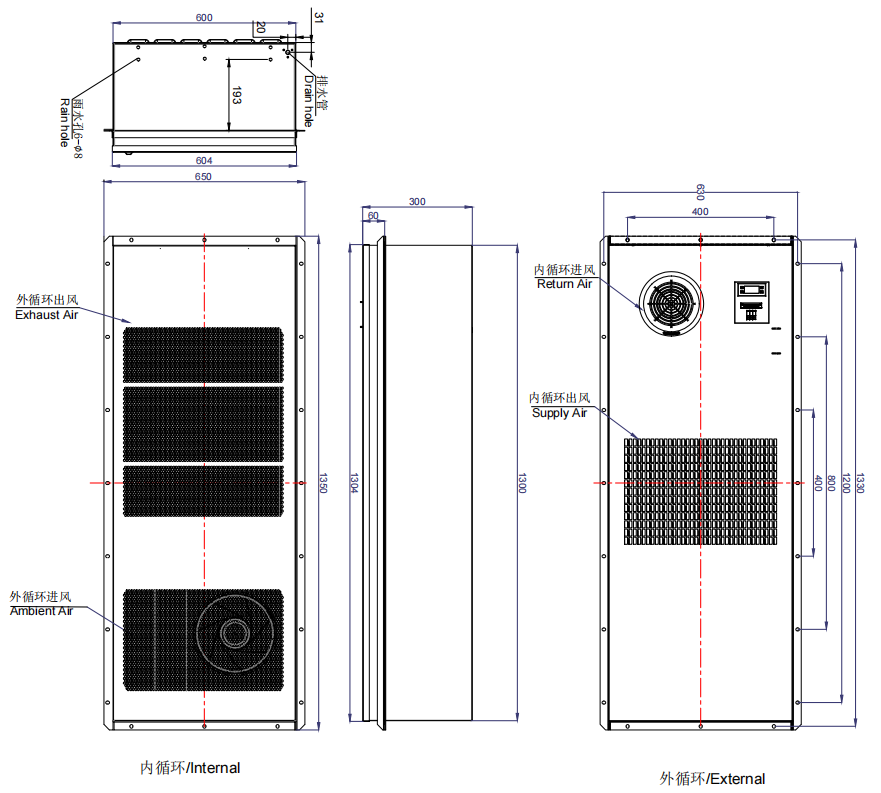

外形尺寸图

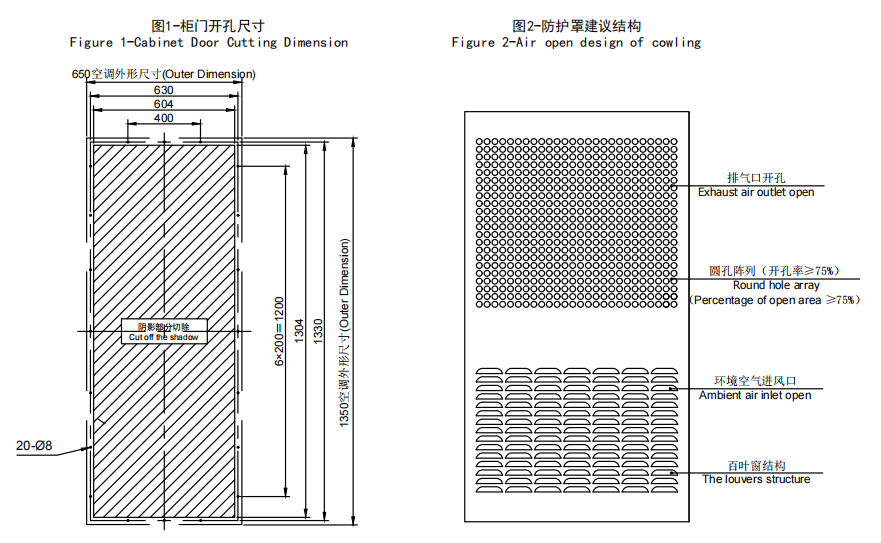

开孔尺寸图
